Notor G2 ReLight kit

Complete LED kit for replacing conventional T5 light sources. Existing opal or lamell louver is reused.

Installation

For mounting in an existing luminaire body.

Connection

 For fixed connection in a terminal block 5x2.5 mm² in single luminaires. The start and continuous luminaires in the system are equipped with through-wiring (5x1.5 mm²) and quick connections between luminaire units. Delivered with 230 V, built-in LED driver in the kit

Louvre

The existing opal or lamell louver is reused. For versions using lamell louver, an opal diffuser film is included with the LED kit.

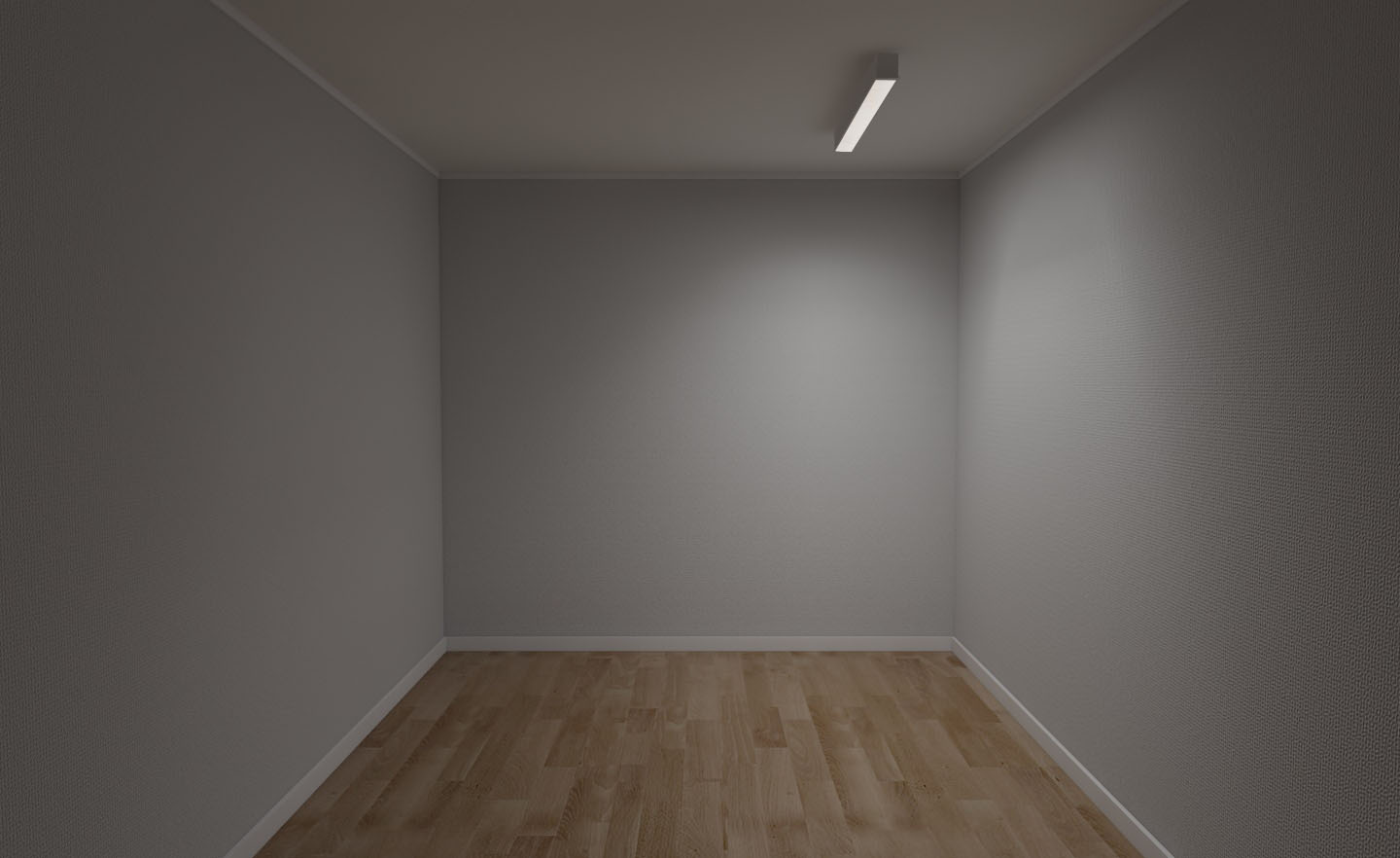

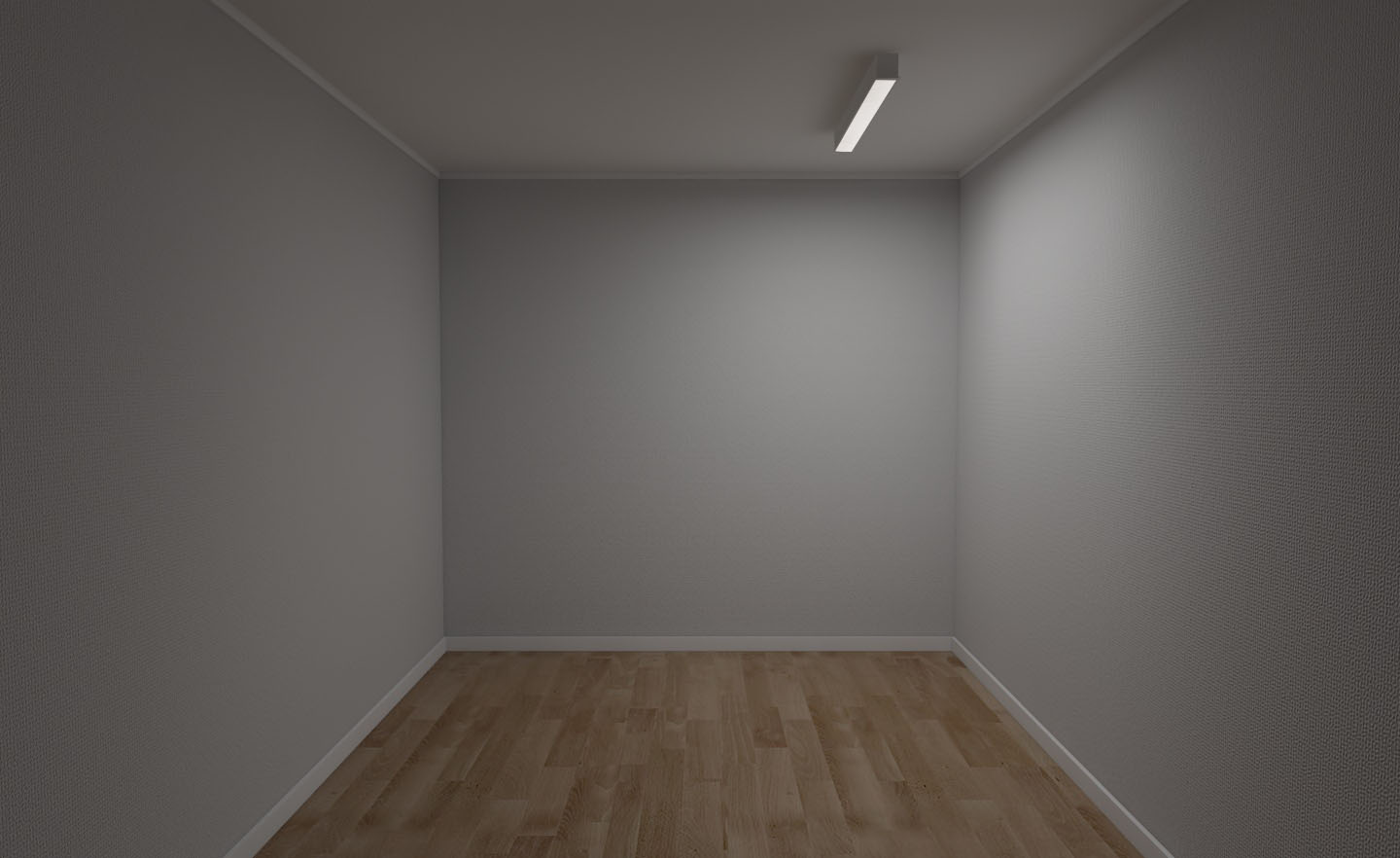

Light distribution

Direct.

Dimming

Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.
Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.

ReLight

Relight kit

ReLight is a circular initiative focusing on reuse by using end-of-life luminaires and materials. By adding new technology and extending the life of the luminaire – we can together take your lighting solutions into the future.

...

More about the family ReLight

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Notor G2 ReLight Opal Shade Notor G2 Relight Opal Shade 1200mm 96500
Notor G2 ReLight Opal Shade Notor G2 Relight Opal Shade 1500mm 96501
Notor G2 ReLight cover plate Notor G2 ReLight cover plate 100mm Anodized 96509
