Scoot
1025 Sweep and Scoot 1025
A modern direct/indirect lighting solution for modern offices. Available with Opal or Delta louvres in five colours.
Installation
Two point suspension c/c 48 mm.
Connection
For permanent connection with 230 V; built-in LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°.
Design
Luminaire body in plastic enamelled in various colours. Supplied with 4 m wire, 2,8 m transparent cable and white, plastic ceiling cup. Height adjustment is done on the luminaire using a friction lock. The ceiling cup handles inclined ceilings up to 20°.
Louvre
Opal - opal acrylic diffuser.
Delta – microprism louvre in acrylic (PMMA).
Light distribution
Delta Ø 450 – Direct/indirect 65/35.
Opal Ø 450 – Direkt/indirekt 65/35.
Dimming
DALI/phase-pulse control as standard. Tunable White on request.
Designed by
PetterssonRudberg.
Miscellaneous
For a surface mounted mains cable, a cut-out is made in the ceiling cup using cutters 94248.
Media

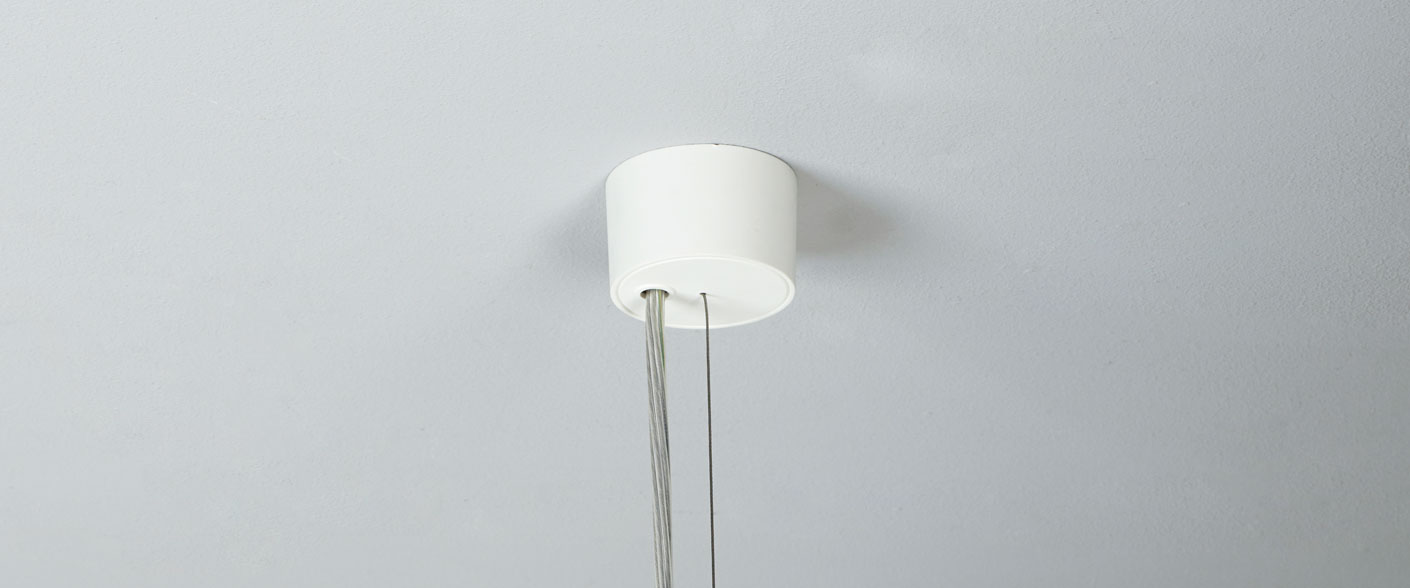

Sweep ceiling cup
Installation clips
Sweep and Scoot
The Sweep and Scoot family are attractive luminaires with colour, shape and function in focus. A team where comfort and feeling are central concepts. The luminaires are durable and future-proof, and meet the demands of a modern...
More about the family Sweep and Scoot
