Pleiad G4 165
22889 Pleiad G4 22889

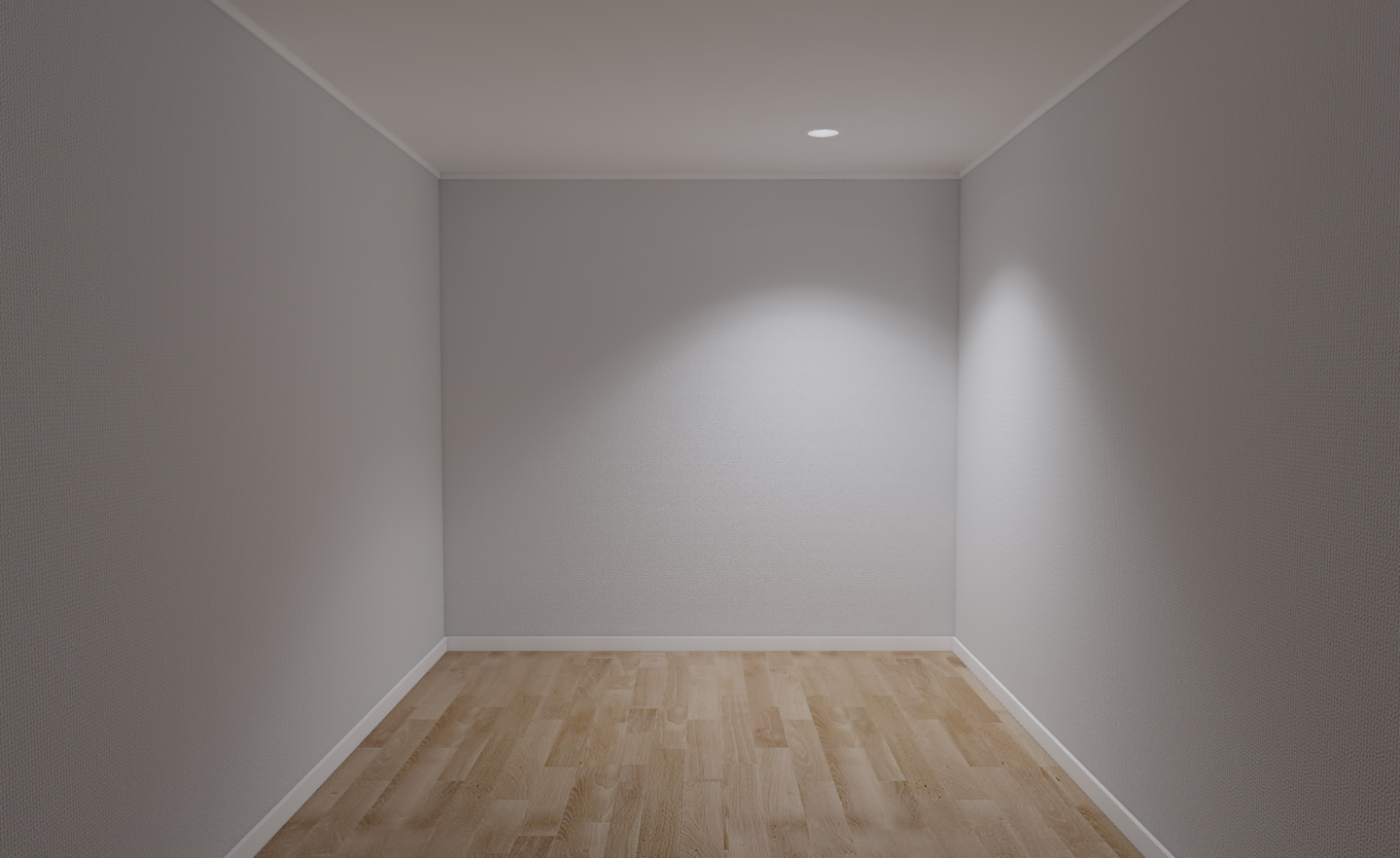

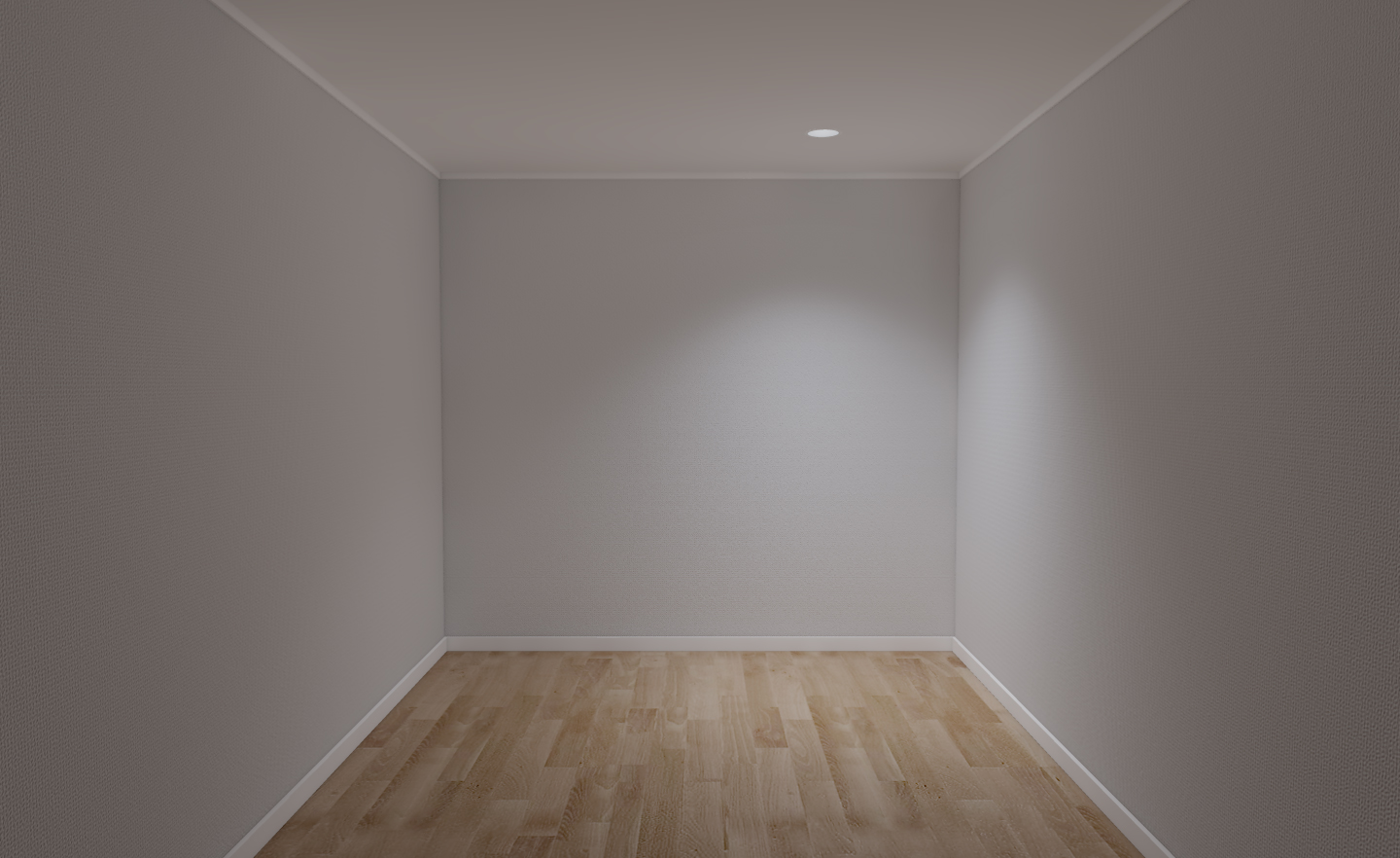

Efficient downlight with excellent technical lighting properties. Choose between several luminous fluxes, reflector options and distribution angles. Also available with Tunable White, RGB/W and integrated emergency lighting.
Installation
Recessed mounting in unventilated or ventilated suspended ceilings. Separate driver and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings, see accessories. For detailed information, see the installation instructions.
Connection
Connection in separate driver box. Snap-in terminal block 3x1.5 mmm² (x2), onward connection possible. 5x1.5 mm² (x2) when dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or mains cable and plug are possible. The luminaire body and driver are interconnected with a snap-in connector.
Design
Luminaire body in cast aluminium. Visible reflector ring in white aluminium (RAL 9003).
Reflector
Reflector of matt metallised aluminium, white (RAL 9003) or black (RAL 9005) finish. Reflector ring in white aluminium (RAL 9003). Lens of clear acrylic.
Miscellaneous
The luminaire is supplied with dust protection over the light opening. IP 64 under a suspended ceiling, IP 20 above a suspended ceiling. Luminaire body Class III. The supplied driver must be connected to the protective earth.
Luminaires with Tunable White (2700 – 6500 K) are equipped with driver DALI Device type 8. Luminaires with RGB/W are equipped with driver DALI Device type 6 (4 addresses / luminaire). Also available for DMX on request.
For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Media
Pleiad G4 – Installation
Pleiad G4
Pleiad G4 is the latest generation of Fagerhult’s classic Pleiad downlight series. Even more efficient. Even better visual comfort. Even quicker to install.
Pleiad G4 simplifies and streamlines advanced lighting planning for...
More about the family Pleiad G4Other products
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 |
|
Ice | Ø 165 | 41315 |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 |
|
Recess panel | Ø 165 mm | 41775 |
|
Mounting plate | Mounting plate | 41956 |
|
Retrofit kit | Retrofit kit Ø 165–270 mm | 41339 |
|
Input unit, Tridonic | DALI XC | 86132 |
|
Sloping ceiling cylinder | Sloping ceiling cylinder, Ø 165 | 41638 |
|
Mounting plate | Mounting plate 625 with deflector. Adapted for downlights with recess dimensions Ø 165 | 41933 |
|
|
Mounting plate | Mounting plate 600 with deflector. Adapted for downlights with recess dimensions Ø 165 | 41932 |
|
Mounting plate | Mounting plate HB. Adapted for downlights with recess dimensions Ø 165. For 38 mm support rail. | 41655 |
|
Cover plate clear IP 64 | Ø 165 mm, matt aluminium | 41848 |
|
Cover plate clear IP 64 | Ø 165 mm, grey (RAL 7040) | 41844 |
|
Cover plate clear IP 64 | Ø 165 mm, white (RAL 9016) | 41840 |
|
Cover plate opal IP 54 | Ø 165 mm, grey (RAL 7040) | 41864 |
|
Mounting plate and support bars | 625 mm | 41959 |
|
Cover plate opal IP 54 | Ø 165 mm, white (RAL 9016) | 41860 |
|
|
Mounting plate and support bars | 600 mm | 41958 |
|
Cover plate Delta IP 20 | Ø 165 mm, white (RAL 9016) | 42031 |
|
Cover plate Delta IP 20 | Ø 165 mm, matt aluminium | 42039 |
|
Cover plate Delta IP 20 | Ø 165 mm, grey (RAL 7040) | 42035 |
|
Cover plate opal IP 54 | Ø 165 mm, matt aluminium | 41868 |
|
Edge ring II | Ø 165 mm, white (RAL 9016), height 11 mm, external diameter 199 mm. | 41900 |
|
Ringlight | Ø 165 mm, white (RAL 9016) | 41750 |
|
Edge ring II | Ø 165 mm, grey (RAL 7040), height 11 mm, external diameter 199 mm. | 41904 |
|
Ringlight | Ø 165 mm, blasted glass | 41754 |
|
Edge ring II | Ø 165 mm, matt aluminium, height 12 mm, external diameter 200 mm. | 41908 |
|
Control panels, Lunatone | DALI Switch Cross | 86354 |
|
Edge ring III | Ø 165 mm, matt aluminium, height 10 mm, external diameter 196 mm. | 41928 |
|
Edge ring III | Ø 165 mm, white (RAL 9016), height 9 mm, external diameter 195 mm. | 41920 |
|
Edge ring III | Ø 165 mm, grey (RAL 7040), height 9 mm, external diameter 195 mm. | 41924 |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 |
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 |
|
Cover plate IP 21 | Cover plate IP 21, Ø165 | 41060 |
|
|
Cover plate clear IP 64 | Ø 165 mm, white (RAL 9016) Margard hard coated | 41708 |
|
Cover plate opal IP 54 | Ø 165 mm, black (RAL 9005 G10) | 41157 |
|
Cover plate Delta IP 20 | Ø 165 mm, black (RAL 9005 G10) | 41154 |
|
Cover plate clear IP 64 | Ø 165 mm, black (RAL 9005 G10) | 41160 |
|
Edge ring III | Ø 165 mm, black (RAL 9005 G10), height 9 mm, external diameter 195 mm. | 41142 |
|
Edge ring II | Ø 165 mm, black (RAL 9005 G10), height 11 mm, external diameter 199 mm. | 41139 |
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 |
