Sidelight
100699 Sidelight 100699
A recessed workplace luminaire for visible ceiling framework. The Delta louvre ensures efficiency and optimal light comfort. With soft incident light on the ceiling.
Installation
Recessed mounting in ventilated or unventilated suspended ceilings.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm.
Connection
Connected to 2.5 mm² 3-way terminal block 3x1.5 mm² (x2), with the possibility of through-wiring. 5x1.5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector.
The luminaire housing and driver are connected via a Quick Connection System.
Design
White enamelled sheet steel (RAL 9016).
Louvre
Delta – microprism louvre in UV stabil polystyrene.
Light distribution
Direct.
Dimming
Organic Response – PIR sensor with presence and daylight control. All luminaires have master/slave functionality with IR communications.
Miscellaneous
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.
CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn-time.
Sidelight

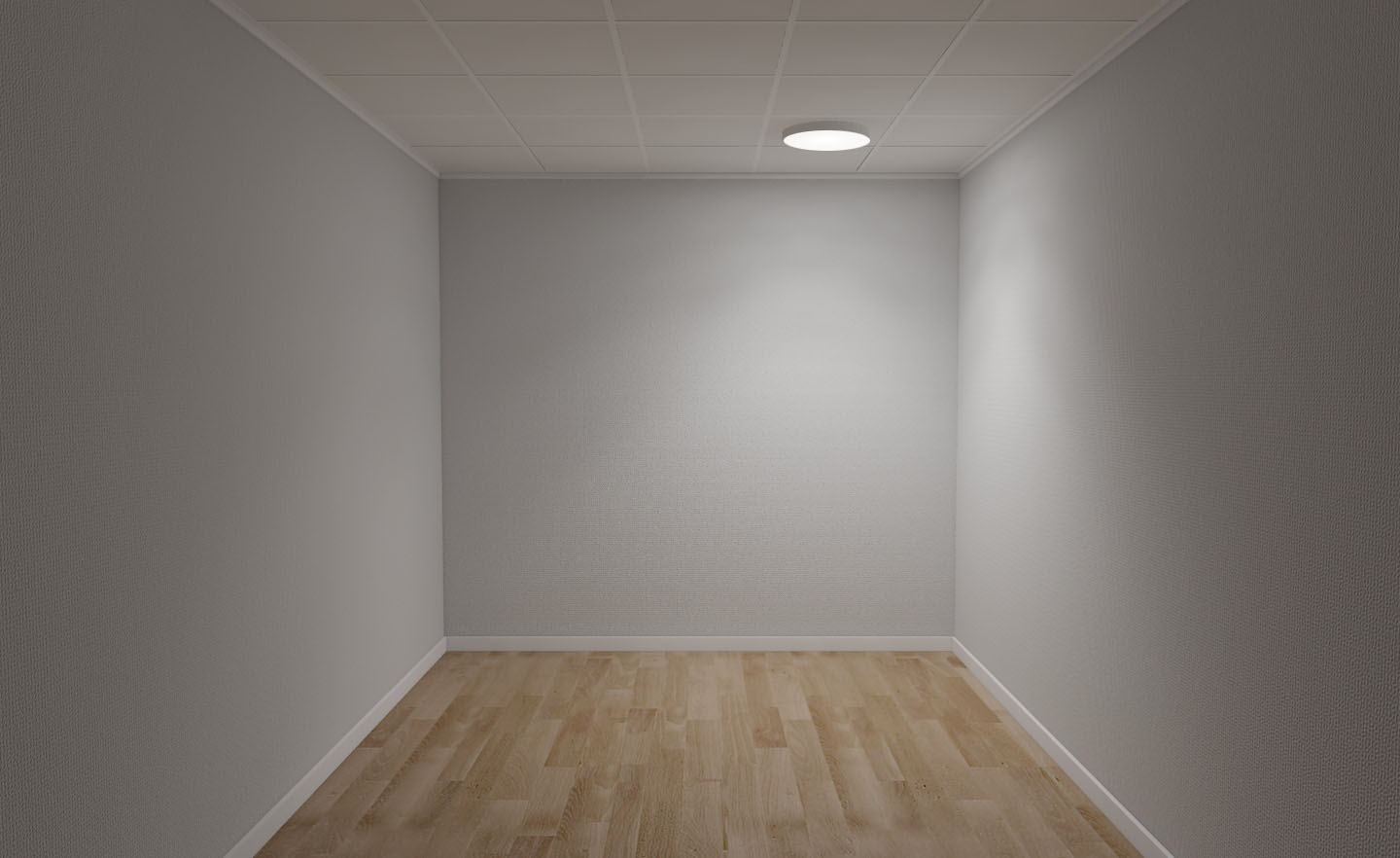

Sidelight is a recessed 600x600 luminaire with a new and alternative aspect. The luminaire is suitable for public and work lighting in passageways, corridors, and communication areas. It is also suitable for offices since it...
More about the family SidelightDocument
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 |
|
Frame for surface mounting | Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. | 41026 |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 |
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 |
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 |
|
Fence | Fence 600x600 white. Only for T-bars T24. | 41252 |
|
Fence | Fence 600x600 champagne. Only for T-bars T24. | 41254 |
|
Fence | Fence 600x600 black. Only for T-bars T24. | 41253 |
|
Sky frame | Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. | 41245 |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg | 41051 |
