Opalume Ovo

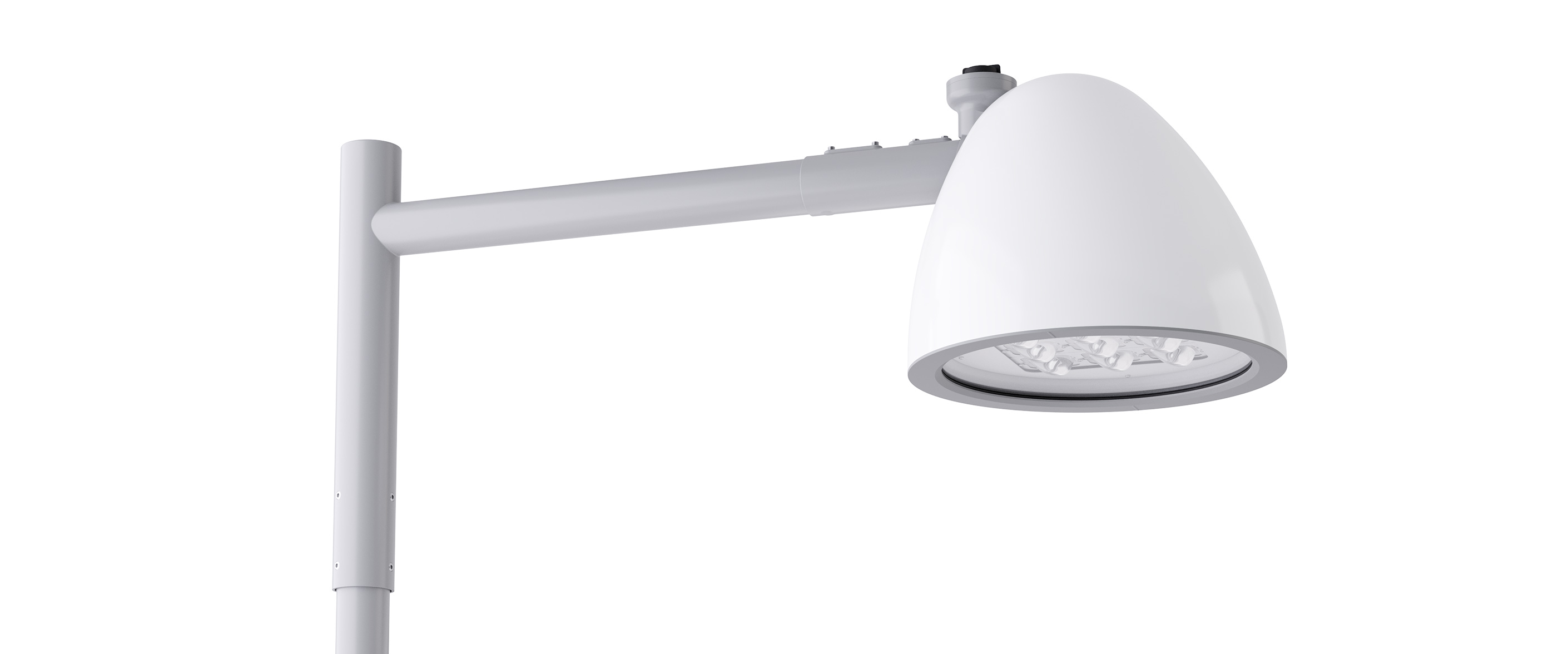

37510 Opalume 37510Post luminaire with high performance and light comfort. Exciting design language in the form of half ellipse with capability for RGBW. Optimised light pattern with AGC lenses developed for road lighting. CLO for even output.
Installation
Luminaire for installation on arm, Ø 48 and Ø 60 mm, with or without external Zhaga socket.
Connection
Supplied with installed cable, length specified upon configuration.
Design
Opal acrylic diffuser. A selection of colours is available in the Configurator, other colours (RAL) on request. Steel post bracket. Hardened flat glass. Fastener of A4 quality with zinc coating. Other components in diecast aluminium.
Optics

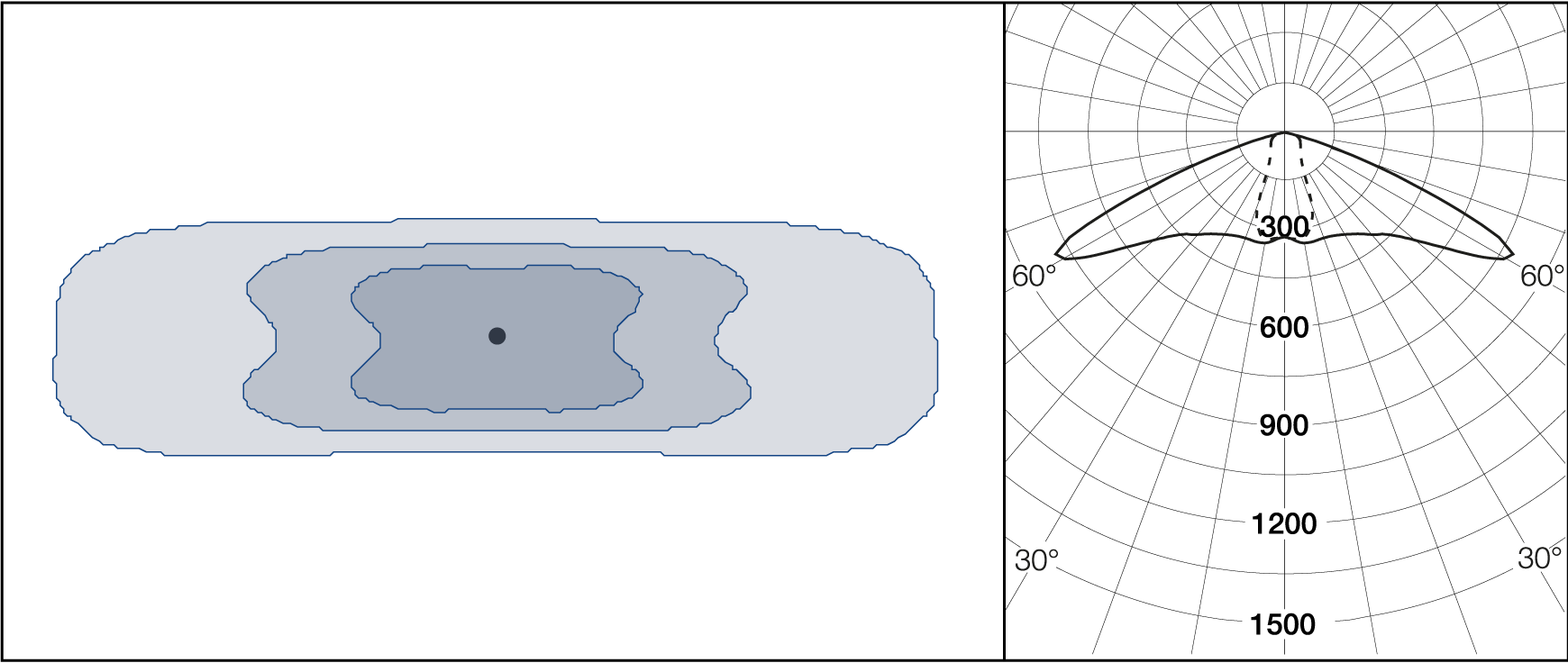

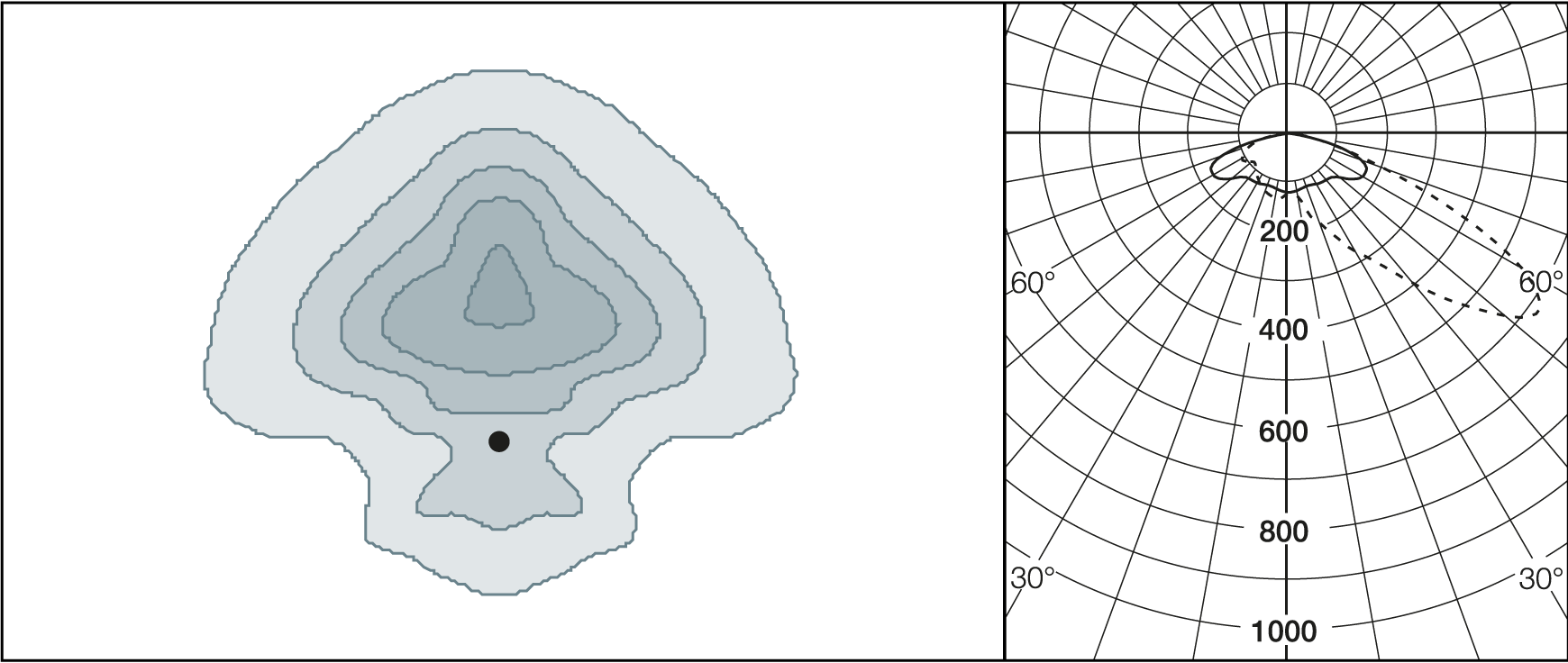

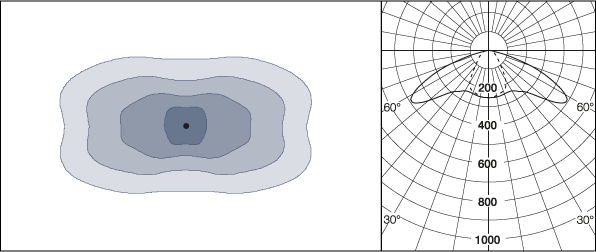

AGC lenses (Advanced Glare Control). The E-lenses are designed with a focus on illuminance. L lenses are the choice if the luminance from the roadway is in focus.
Dimming
DALI variant, night-time dimming and Airglow RGBW control can all be added in Fagerhult Configure.
Citygrid for luminaires with Zhaga base. For Citygrid Zhaga products, see accessories.
Quick start guide for Airglow; see document below.
Can be supplied pre-configured for Philips CityTouch control system on request.
LED-information
Driver with integrated surge protection, CM 8kV, DM 6kV. Extra surge protection of 10 kV on request.
Miscellaneous
Available in class I and II.
Zhaga or NEMA socket on request.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Media
Opalume
Opalume is a range of weatherproof luminaires for streets and roads, combining high performance with excellent light comfort. Opalume is available in three shapes; spherical, conical and half ellipse. The carefully balanced...
More about the family OpalumeDocument
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
Name | Description | Art.no. | |
---|---|---|---|
Name | Description | Art.no. | |
Post-top bracket to Opalume | Bracket for Ø 60 mm post top. Alu-grey. | 309910 | |

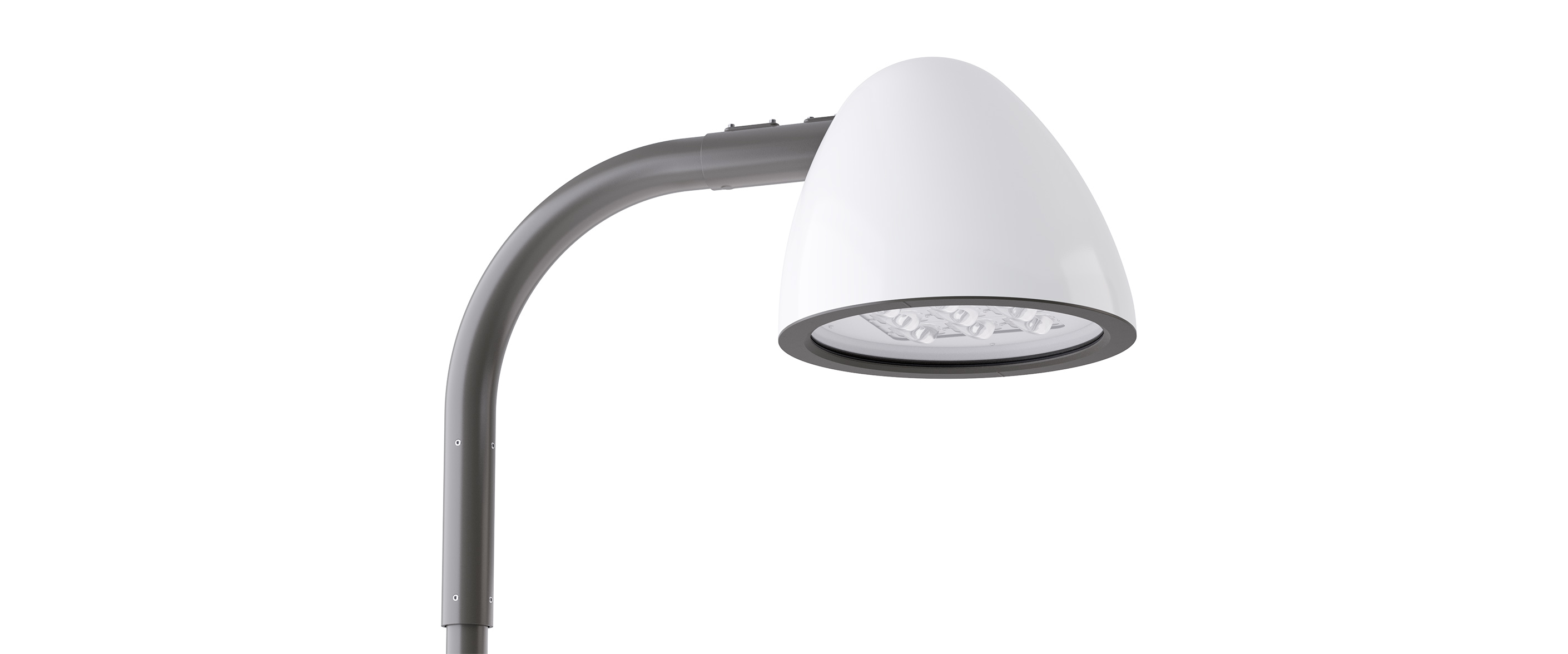

Post-top bracket to Opalume | Bracket radius 90° for Ø 48 mm post top. Alu-grey. | 309909 | |
Glare Shield | Glare Shield 4 LED | 303541 | |
Glare Shield | Glare Shield 7 LED | 303543 | |
Glare Shield | Glare Shield 9 LED | 303545 | |
Post-top bracket to Opalume | Bracket radius 90° for Ø 60 mm post top. Alu-grey (RAL 9006). | 309912 | |

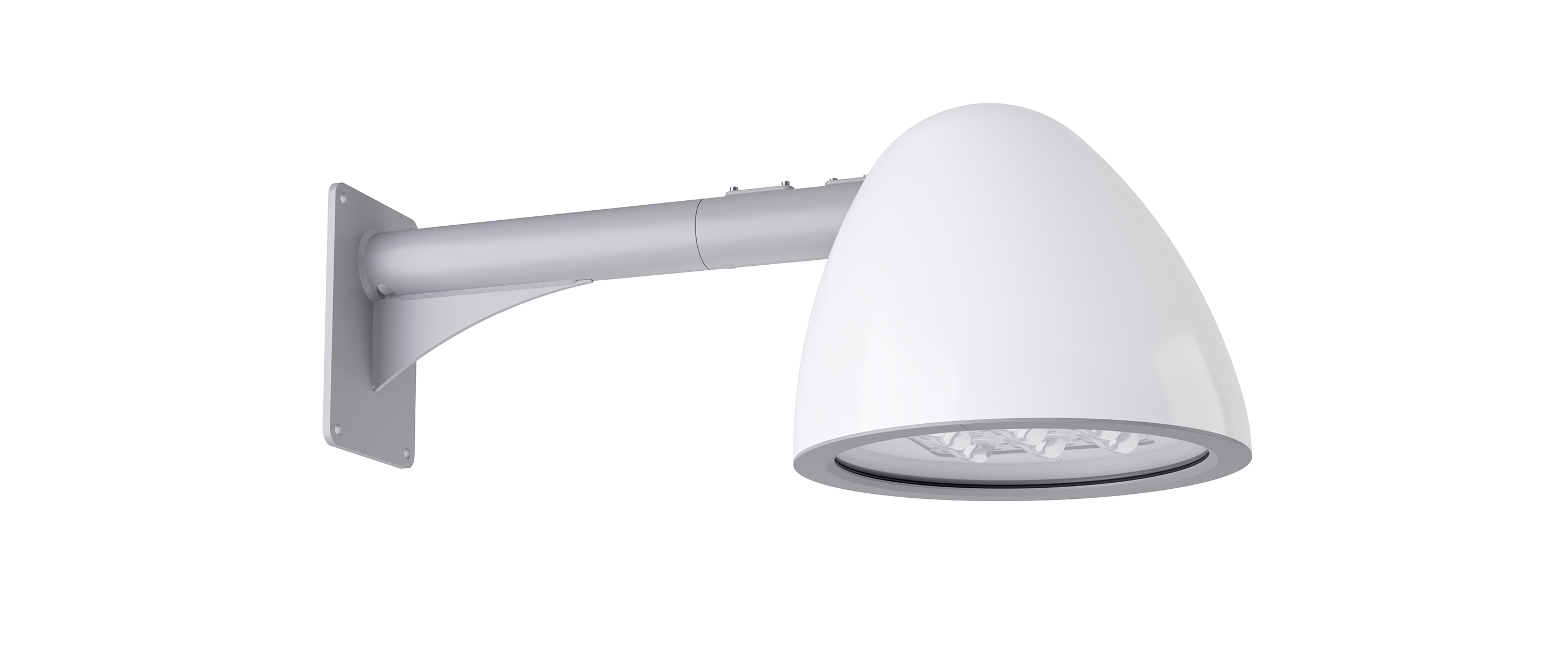

Wall bracket for Vialume and Opalume | Wall bracket arm Ø 48 (standard). | 303677-235 | |
Double post-top bracket for Oplaume | Double post-top bracket for Ø 60 mm post top. Black (RAL 9005 G70). | 303675-224 | |
Double post-top bracket for Oplaume | Double post-top bracket for Ø 60 mm post top. Black (RAL 9005 texture). | 303675-230 | |
Double post-top bracket for Oplaume | Double post-top bracket for Ø 60 mm post top. Alu-grey (RAL 9006 G70). | 303675-235 | |
Double post-top bracket for Oplaume | Double post-top bracket for Ø 60 mm post top. Anthracite (Gris 900). | 303675-329 | |
Double post-top bracket for Oplaume | Double post-top bracket for Ø 60 mm post top. Traffic grey (RAL 7042 G70). | 303675-548 | |
Double post-top bracket for Oplaume | Double post-top bracket for Ø 60 mm post top. Graphite grey (RAL 7024 G70). | 303675-549 | |
Double post-top bracket for Oplaume | Double post-top bracket for Ø 60 mm post top. Green (RAL 6009 G70). | 303675-552 | |
Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 | |
Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 | |
Citygrid Zhaga Controller MKII | The Citygrid Zhaga Controller MKII is the intelligent device that transforms a luminaire into a smart luminaire. | 86505 |
