Dwide recessed
5855 Dwide 5855
Recessed workplace luminaire in three sizes. The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes light evenly in the reflector.
Installation
Recessed mounting in suspended ceilings. Unventilated or ventilated ceilings.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm.
HB – recessed frame allows 600x600 to be installed in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm).
Connection
Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.
Design
Luminaire body of white enamelled sheet steel (RAL 9016).
Louvre
Delta – microprism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) on the inside (PMMA). Light divider in acrylic (PMMA).
Dimming
Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.
Miscellaneous
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth. e-Sense Organic G3 is available in multiple variants on request.
Ra (CRI) 90 on request.
Media

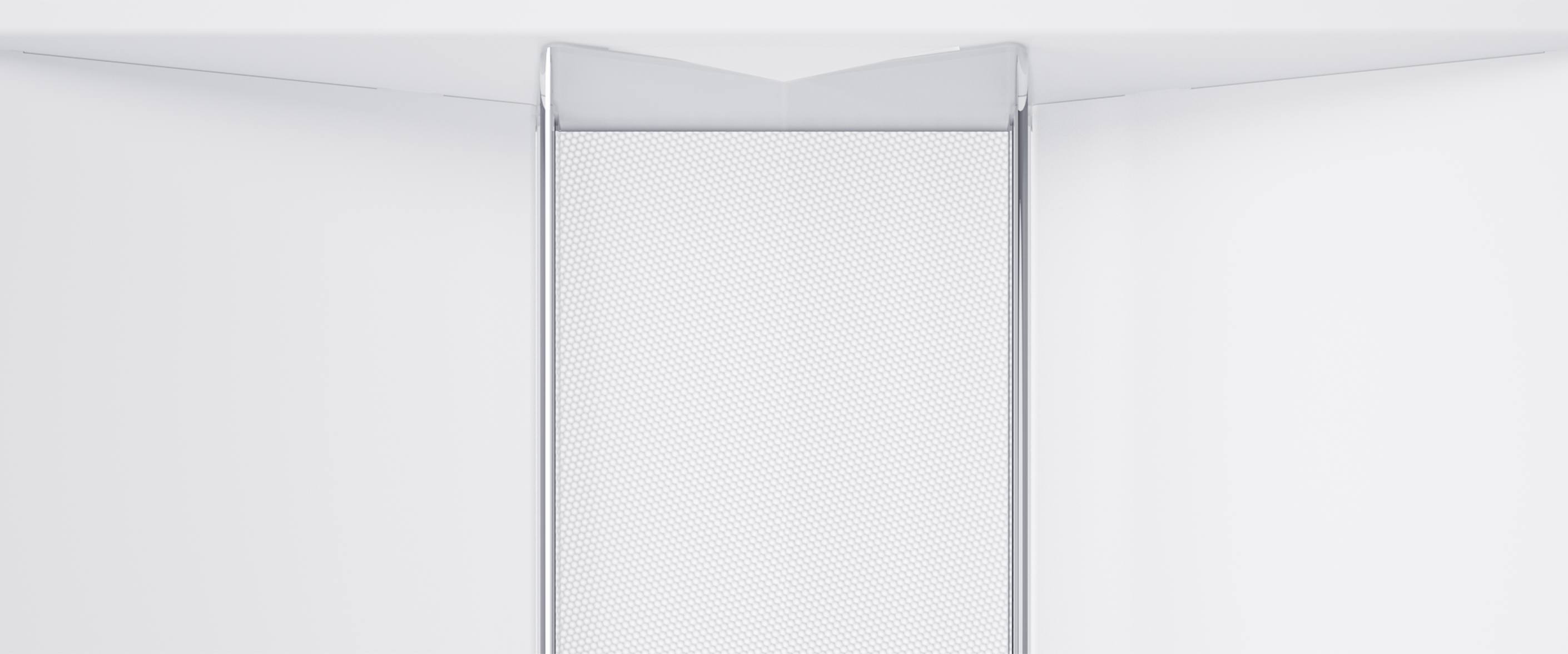

The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes and spreads the light evenly in the reflector.
Organic Response – How it works
Dwide
Dwide is a complete, versatile product family that meets all lighting requirements – whether for office, school or hospital projects. Recessed, ceiling-mounted and pendant luminaires with different light distributions are...
More about the family Dwide
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 |
|
Frame for surface mounting | Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. | 41026 |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 |
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 |
|
Recessed frame | Recessed frame to Dwide 600x600 VTB body for installation in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm). | 41050 |
|
Frame for surface mounting | Frame for surface mounting (300x1200 VTB). Fits Multilume Flat, Dwide, (only standard and DALI), as well as Multilume Slim with DALI and Organic Response. | 41027 |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 1 m cable | 86407 |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 1 m cable | 86408 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. | 86409 |
|
|
External Organic Response sensor incl. DALI PSU | Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. | 86412 |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 3.2 m cable | 86411 |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 3.2 m cable | 86410 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 |
|
Cover plate for flat upper surface | Cover plate for flat upper surface, white (RAL 9016). | 41039 |
|
Frame for surface mounting | Dwide Multilume Re:Think & Multilume Slim, Surface mounted frame, 600x600. | 41033 |
|
Frame for pendant installation H=60 mm | Dwide & Multilume Slim pendant frame 600x600 incl. wires | 41034 |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg | 41051 |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 300x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 3kg | 41048 |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 300x1200 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4kg | 41049 |
